Optical Metrology Video Measuring Machine With 1/2”Color CCD Camera
Video Measuring Machine INTRODUCTION:
This Video Measuring Machine is a high precision and high efficiency measuring machine.electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
Applied mainly for 2D measurement and can support some specific 3D measurement as necessary.
Video Measuring Machine SPECIFICATIONS:
| Model | WVMS-2515F Video Measuring Machine |
| Metal table size (mm) | 450×280 |
| Travel (mm) | 250×150 |
| Video System | 1/2”color CCD camera |
| Auto zoom lens magnification: 0.7X~4.5X |
| Magnification: 20~128X |
| Object view: 11.1mm~1.7m |
| Surface lighting and transmission lighting both adopt adjustable LED |
| Linear scale resolution: 0.0005mm. X, Y-axis indication error: (2.5+L/100)μm (L is the length of the measured object. Unit: mm) |
| Consistency error of origin in different sections | E0≤20 (every 100mm displacement in Z axis) |
| Z-axis travel (mm) | 200 (can be customized to 400) |
Video Measuring Machine Application:
It is widely used in the fields of machine, electronics, instrument, plastic and so on.
Video Measuring Machine FEATURES:
1. Various forms of light source, ensure to meet the diversity of measurement needs.
2. Height auxiliary measurement can be achieved.
3. Effectively support data processing, data display, data input, and data output.
Video Measuring Machine package
1. Silver bag inside
2. Wooden case with pallet outside
3. Total volume is arount 1-2CBM
4. Suitable for exporting, suitble for loading and unloading

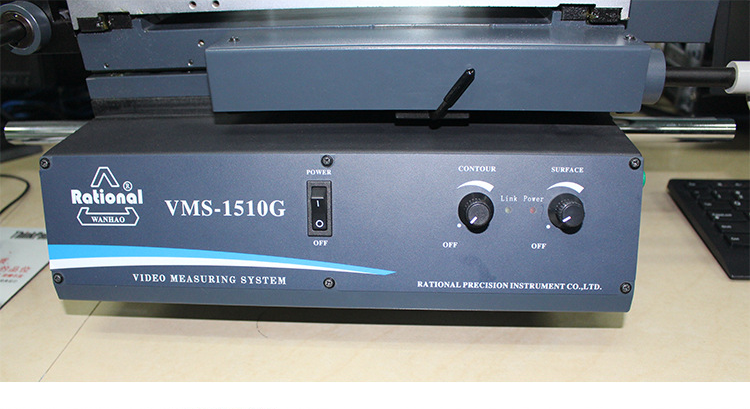

Video Measuring Machine Details
