Rapid Change Laboratory Humidity Chamber / Programmable Temp Humidity Chamber
Laboratory Humidity Chamber Feature:
1. High texture appearance, the body adopts arc shape, the surface is treated by mist surface stripe, and the plane has no reaction handle, easy to operate, safe and reliable.
2. Rectangular laminated glass viewing window, which can be used for observation of test products in the test. The window is equipped with anti-perspirant electric heater device to prevent water vapor condensation droplets, and high-brightness PL fluorescent lamp to keep the lighting inside the box.
3. Double-layer air tight insulation of the door can effectively isolate internal temperature leakage.The utility model has an external water supply system, which is convenient for replenishing the water supply from the humidifying bucket and can be recycled automatically.
Laboratory Humidity Chamber SPECIFICATIONS:
| Model | TZ-HW408L Laboratory Humidity Chamber |
| Internal size WxHxD(cm) | 60*85*80 |
| External size WxHxD(cm) | About 165*195*155 |
| Inner chamber Materials | SUS#304 Stainless steel |
| Temperature range | Low temperature: A: +25 °C B:0°C C:-20°C D:-40°C E:-60°C F:-ZO°C)
High temperature: 100°C(150°C) |
| Humidity range | 20%~98% R.H. (10%~98%R.H); (5%~98% R.H is a special selection condition) |
| Distribution accuracy | 0.1P 0.1%R.H./±2.0P ±3.0%R.H. |
| Temp and humi control accuracy | ±0.5t) ±2.5%R.H. |
| Heating/cooling time | Heating about: 3°C/min Cooling: 1°C /min |
| Internal and external materials | The inner and outer boxes are made of SUS304# stainless steel plate |
| Insulation material | High temperature resistant high density ethyl chloroformate foam insulation material |
| cooling system | Air-cooled / single-stage compressor (-20°C); two-stage compressor (-40°C - 70 °C) |
| Safety device | No fuse switch, compressor overload protection, super humidity over temperature protection, water shortage alarm protection |
| power supply | AC220V 50/60Hz & 1 # AC380V 50/60Hz3§ |
| Weight | About 350KG |
Laboratory Humidity Chamber FEATURE:
- The heating system adopts the completely independent nickel-chromium alloy electric heating type, with high resistivity, small resistance temperature coefficient, small deformation at high temperature and not easy to embrittlement, and long service life.
- International brand compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
- The outer box adopts anti-rust treatment cold-rolled steel plate , with reasonable structure and elegant appearance.
- Programmable touch controller
- Brand new and perfect modeling design, high quality appearance.Low noise design, can be connected to computer.
- The glass window is equipped with high-brightness fluorescent lamp, allowing the user to observe the conditions inside the test chamber at any time.
Laboratory Humidity Chamber ADVANTAGES:
1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.
2. The product has excellent performance and durability with reasonable price,can be customized according to the special needs of customers.
3. Famous brands are adopted for key components to guarantee the performance and quality.
4. We company established a sound quality assurance system and complete after-sales service guarantee system.
5. Free warranty for 1 year.

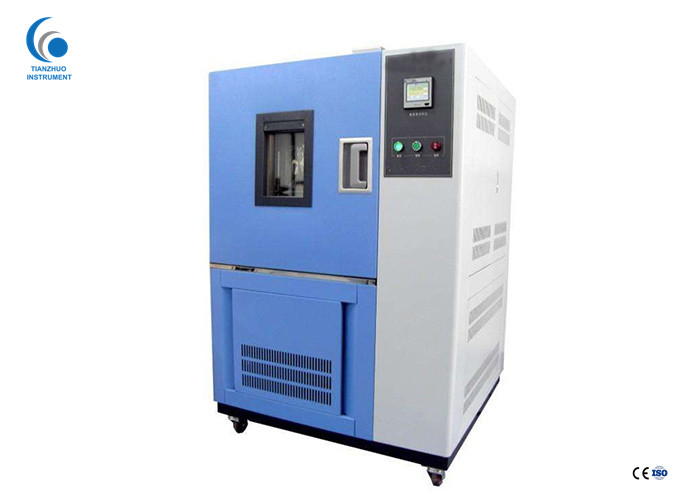

Laboratory Humidity Chamber PHOTOS
