Mini Temperature And Humidity Test Chamber With LCD Touch Screen Control
Temperature And Humidity Test Chamber INTRODUCTION
Temperature And Humidity Test Chamber is a precise and durable conditioning system that able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing
Constant Temperature and Humidity test chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.
Temperature And Humidity Test Chamber FEATURE
1. International brand compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
2. The inner box is made of SUS304# high-brightness mirror stainless steel.
3. The outer box adopts anti-rust treatment cold-rolled steel plate (spraying), with reasonable structure and elegant appearance.
4. Programmable touch controller
5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.
6. Brand new and perfect modeling design, high quality appearance.Low noise design, can be connected to computer.
Temperature And Humidity Test Chamber TECHNICAL PARAMETERS
| Model | TZ-HW1000 Temperature And Humidity Test Chamber |
| Internal Volume(L) | 1000L |
| Dimensions | Studio Size(mm) | 1000*1000*1000 |
| Machine Size(mm) | 1500*1500*1900 |
| Structure | Combined structure (If the door is not wide enough, small size is available, width reduced by 250 ~ 300mm) |
| Weight (Kg) | About 800 |
| Parameters | Control Methods | Balanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment |
| Temperature Range | -40ºC~+150ºC -70ºC~+150ºC |
| Humidity Range | 20%~98%R.H (0%～100% R.H can be customized) |
| Heating Rate | 1-2ºC/min (Linear Adjustment 3-5℃/min can be Customized) |
| Cooling Rate | 0.7ºC-1ºC/min (Linear Adjustment 3-5℃/min can be Customized) |
| Uniformity | Temperature: ±1.5ºC Humidity: ±2.5%R.H |
| Fluctuation | Temperature: ±0.5ºC Humidity : ±2%R.H |
| Temperature Calibration Point | +23 °C and +80 °C |

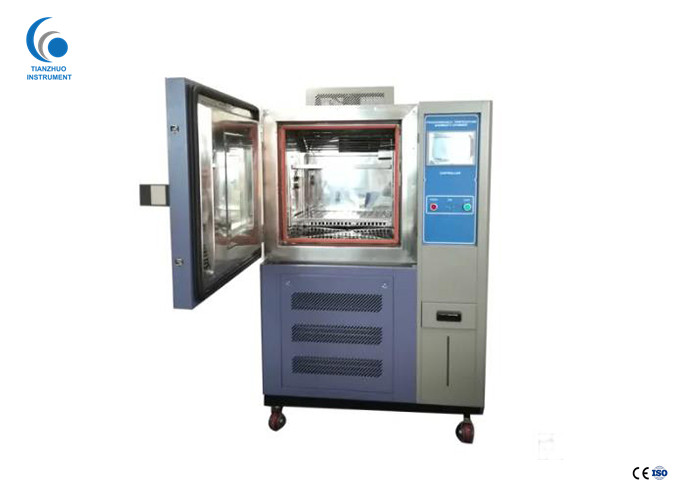

Temperature And Humidity Test Chamber PHOTOS
